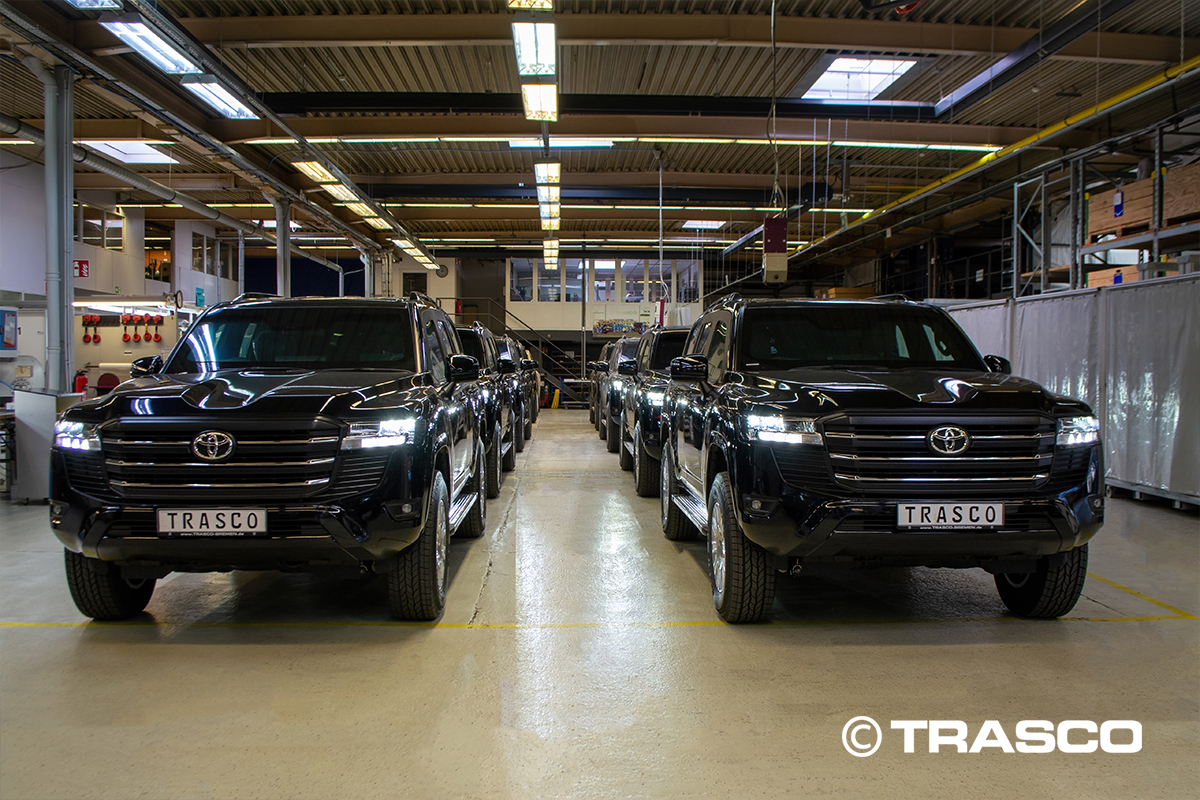

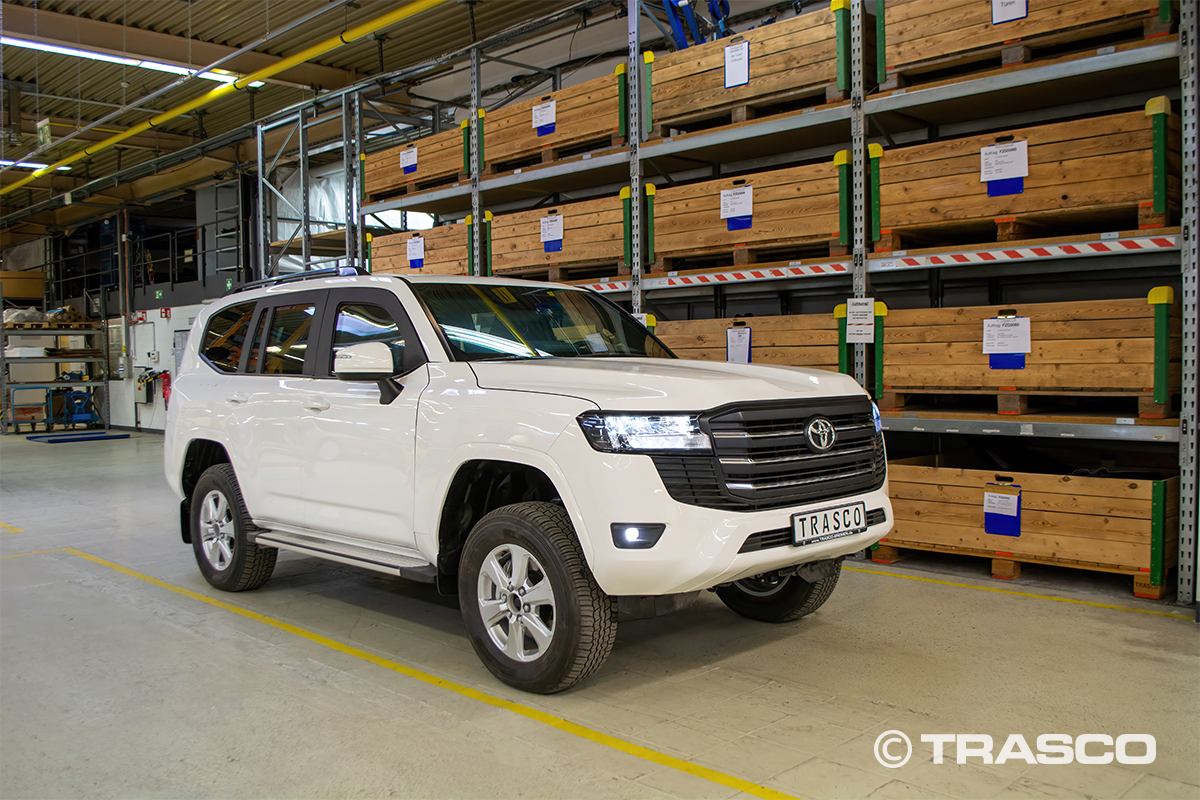

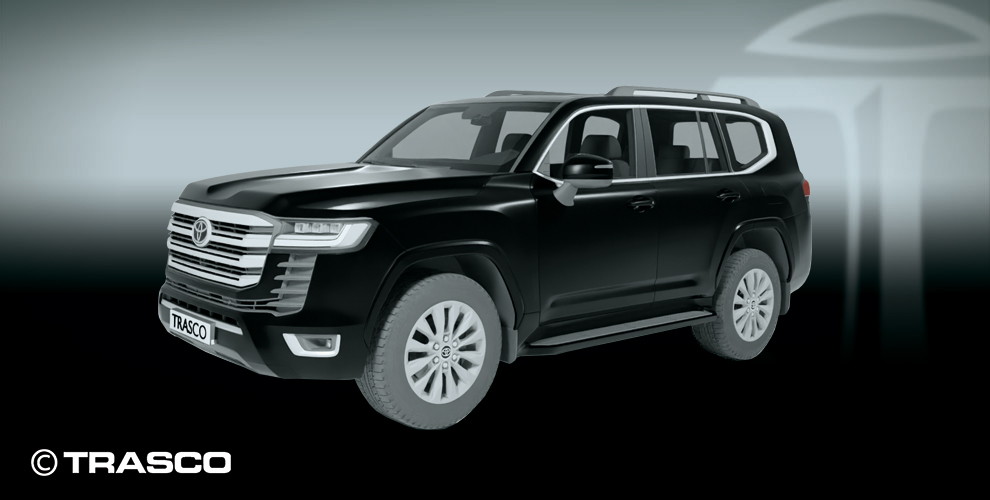

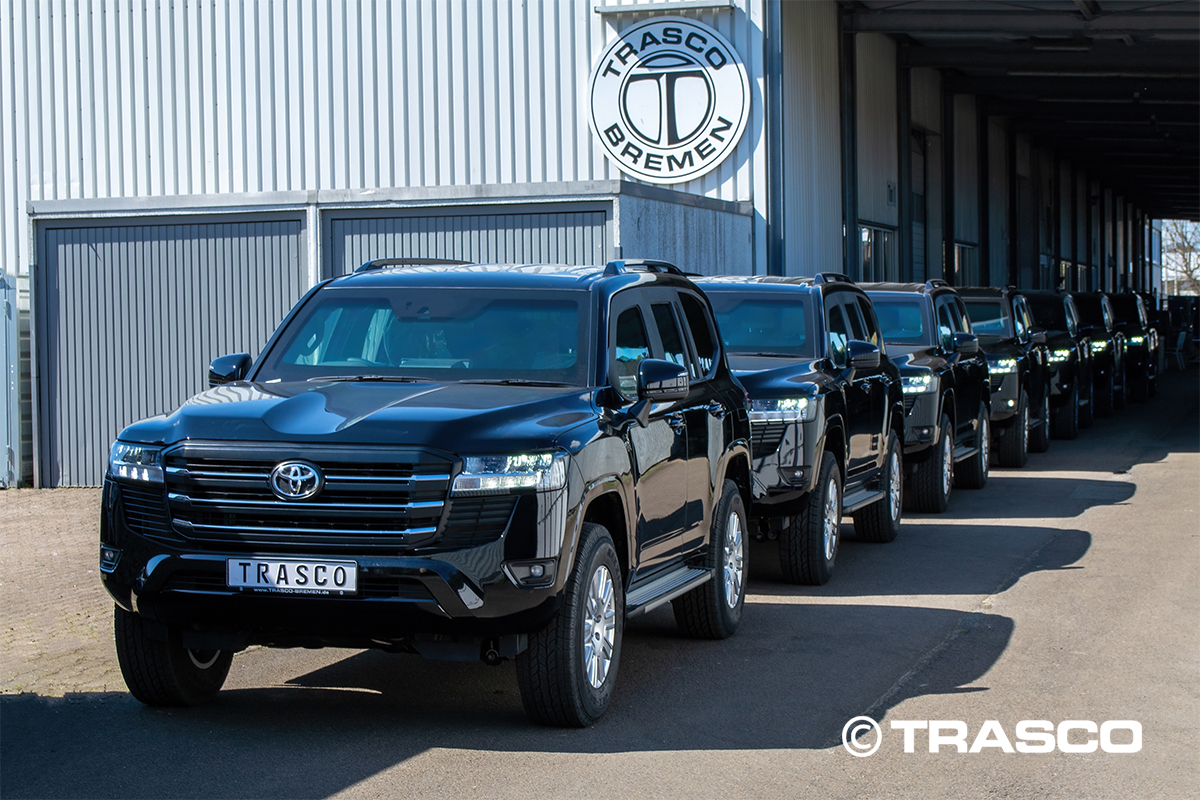

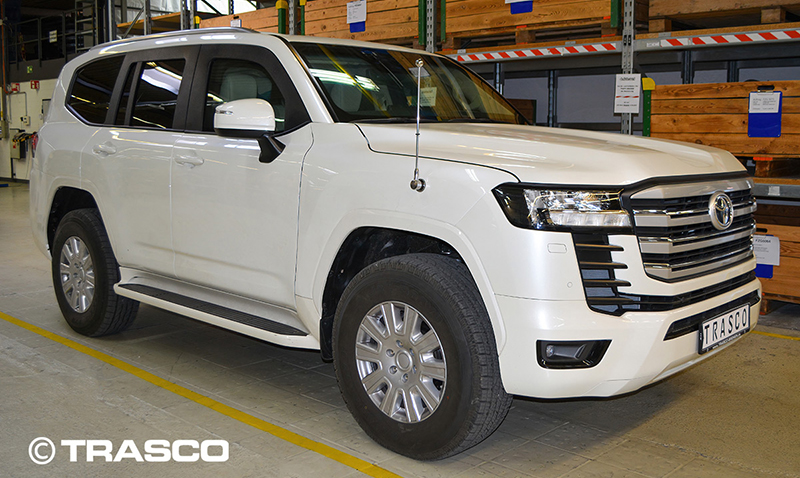

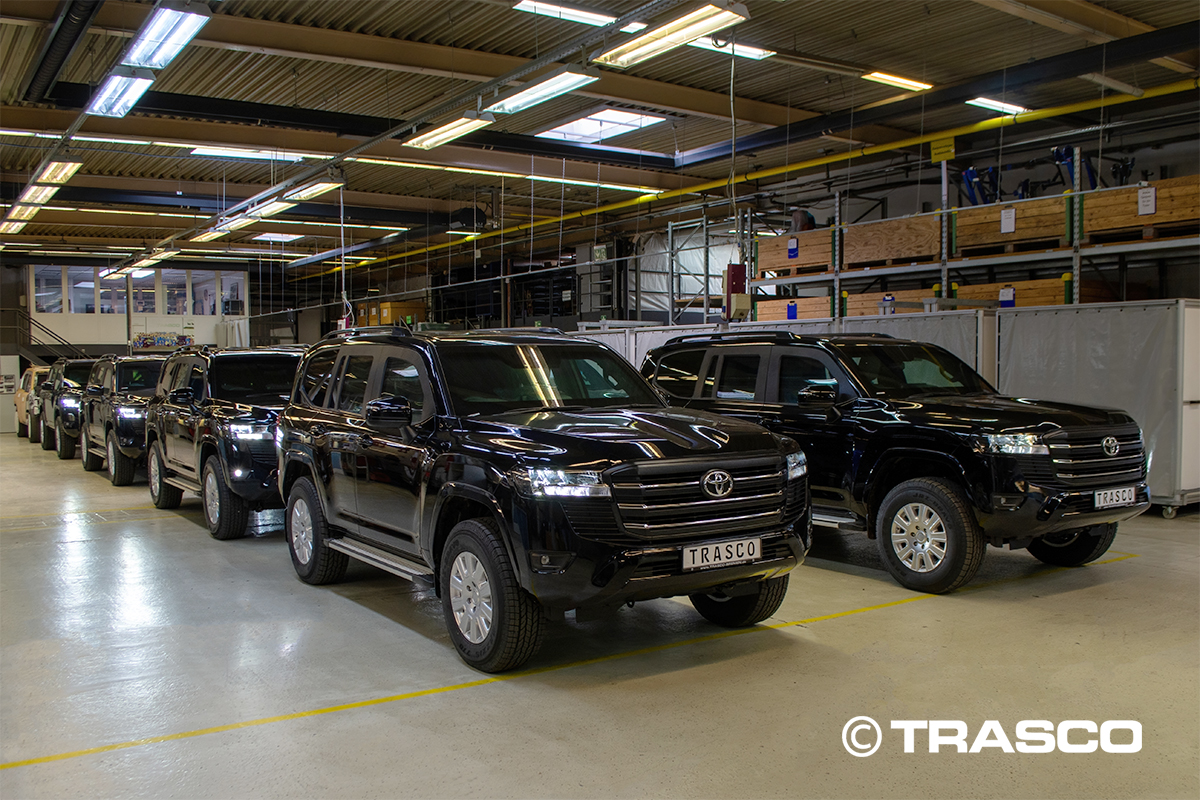

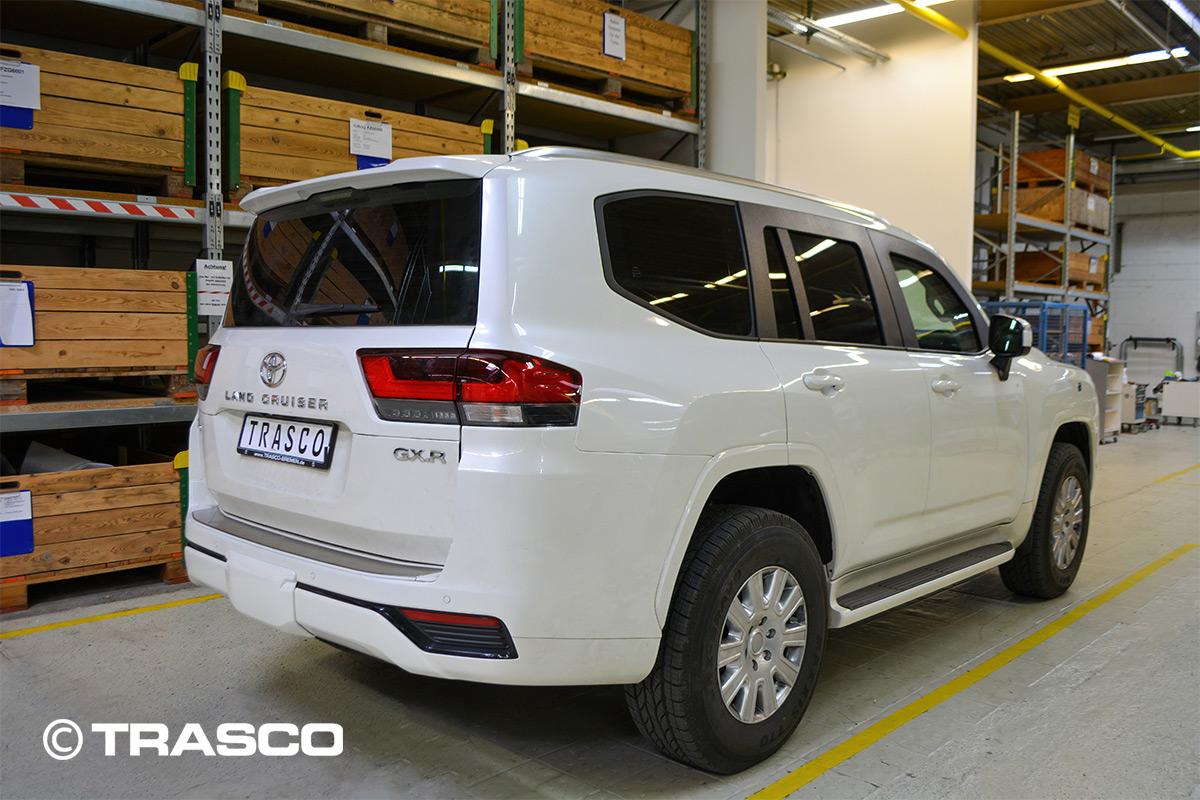

TOYOTA LAND CRUISER 300

The new Land Cruiser 300 from TRASCO is available in the high armor level VR7 as a FULLY CERTIFIED, FULLY ARMORED VEHICLE according to VPAM Ballistic Protection Standard BRV Edition 3 Level VR7 and VPAM Explosion Protection Standard ERV Edition 3 against mine DM31, hand grenade HG85 and DM51 and side blast 12,5 kg PETN.

Since 1998, more than 1,000 predecessor models of the Toyota Land Cruiser 100 and Toyota Land Cruiser 200 have been built in various armor levels by TRASCO. This particular vehicle is used by international organizations, government and private customers around the world for comprehensive protection in hazardous situations.

Armoring cage with A, B and C pillars and overlaps integrated in passenger cell

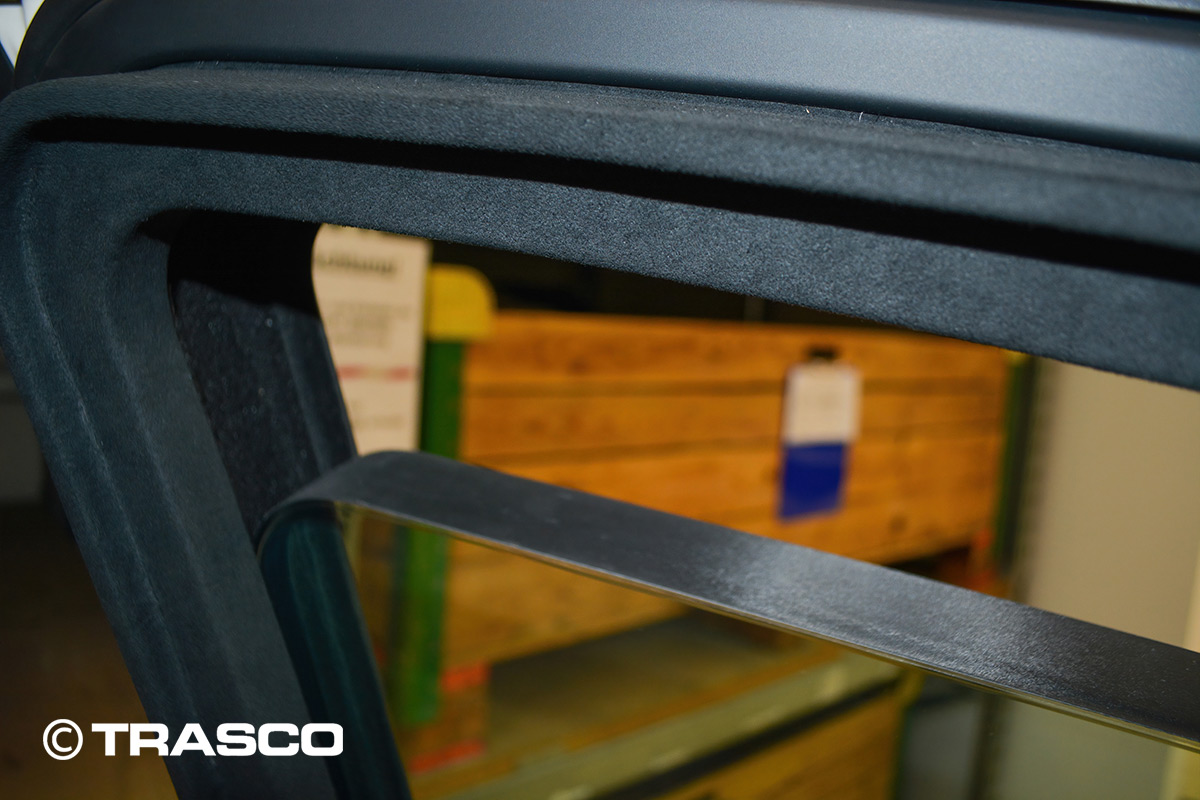

Special quality laminated safety glass

1 or 2 armored batteries

Self-sealing fuel tank

Heavy duty wheels which are designed for a payload of 1600 kg

Body frame connection addapted

Reinforced door arresters and door hinges, directly mounted to the armoring cage

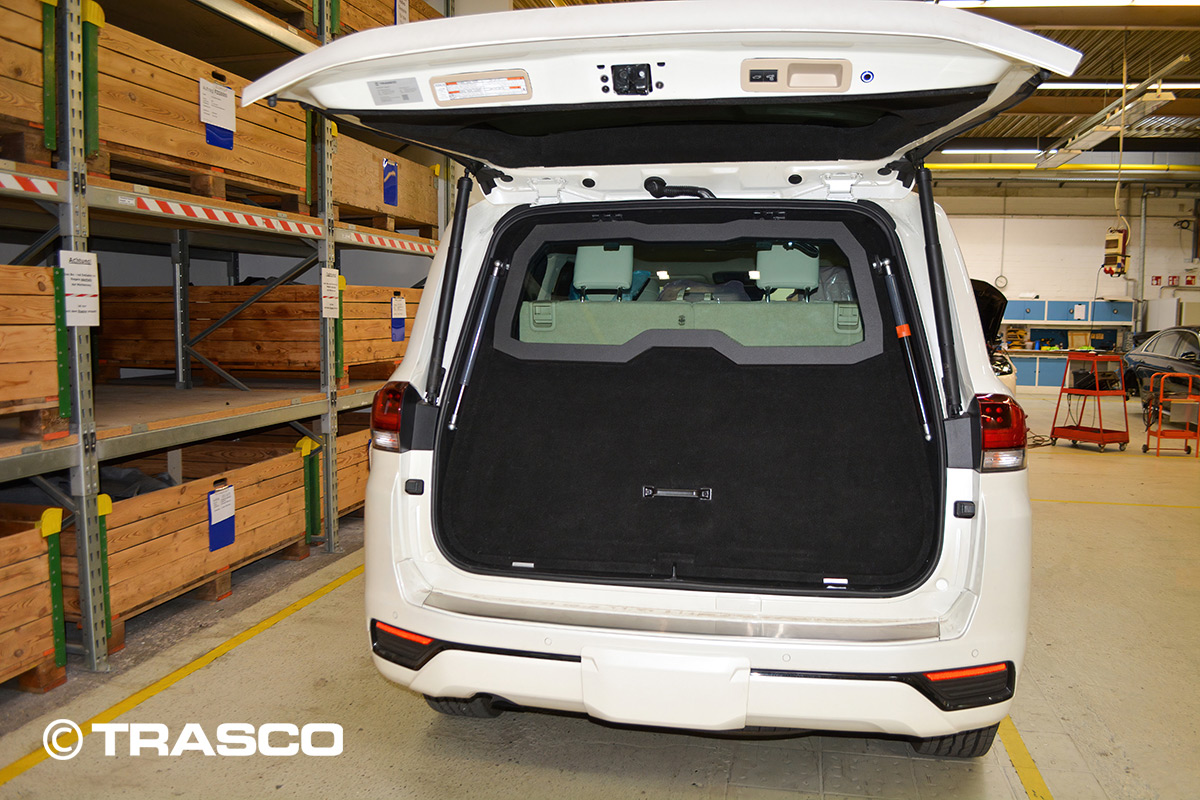

Gasspring, new doorstops and vinyl straps

Armored engine control unit
Armoring

Threat

Testlevel according to
VPAM APR 2006

Classification by
PM 2007 (PM)
BRV 2009 (VR)

Stanag 4569
AEP 55 (level)

Comparable to*
DIN EN 1063 (BR),
DIN EN 1522/23 (FB),
BRV 1999 (VR)

Type of Weapon

Calibre

Type of bullet

Testcondition

Standoff (m)

Standard Hit Spacing

7

PM 7
VR 7

Level 1

BR 5
FB 5
VR 5

M16A2/Famas-G2

5.56 x 45mm

FJ(2)/PB/SCP(1)

10 +/- 0.5

3 shots on the vertices of a triangle @ 120 +/- 10mm

BR 6
FB 6
VR 6

M80 Ball
(M60/M14/FAL-FN)

7.62 x 51mm

FJ(1)/PB/SC





( B6+ not classified)

M16A1/Famas-G1 (M193)

5.56 x 45mm

FJ(2)/PB/SC
