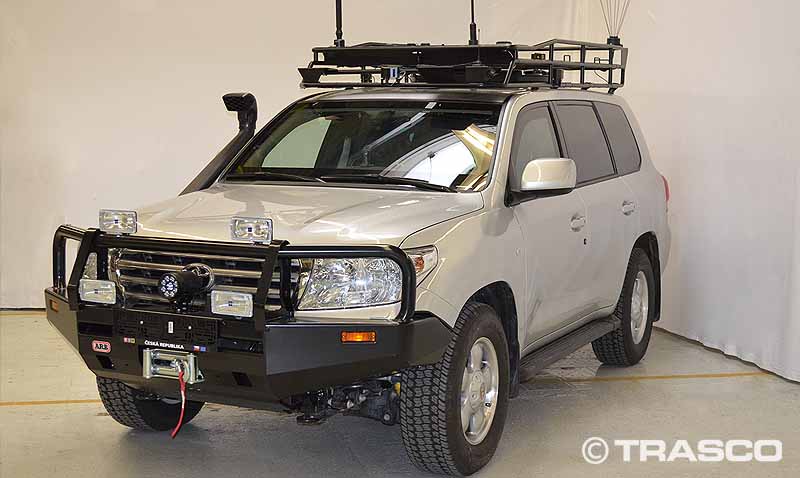

TOYOTA LAND CRUISER 200/300 - SPECIAL FORCES

The Land Cruiser 200 as well as Land Cruiser 300 Special Forces (SF) by TRASCO are available in high level protection from Level 7 up Level 9 according to the new ballistic guidelines VPAM BRV 2009 and Stanag NATO Level II.

Many TRASCO Toyota Land Cruiser 200 SF were build as special support vehicles according to the different military and police aims.

TRASCO Land Cruiser 200 SF is reinforced for middle and hard off-road conditions at the car body, frame, suspension and brake by means of heavy duty components.



Additional to the standard armoured SUV the possible options corresponding to military or police aims are:

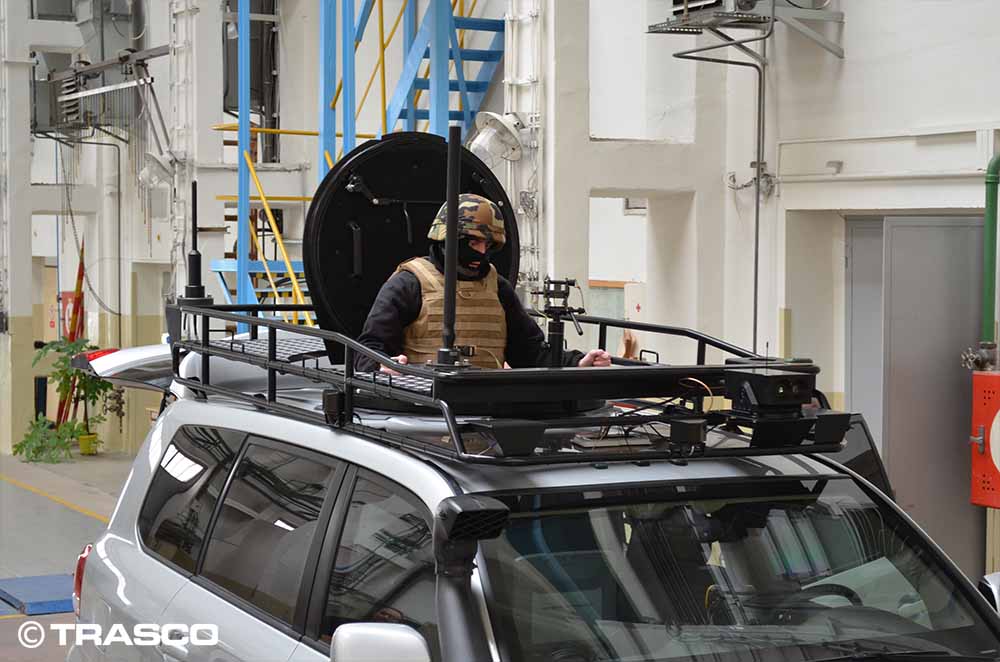

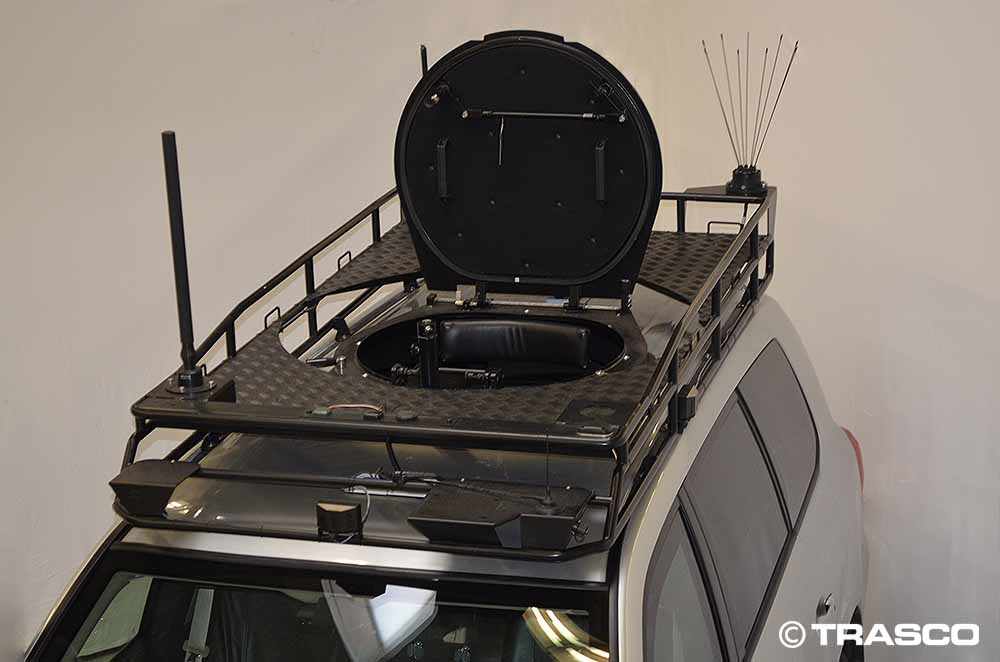

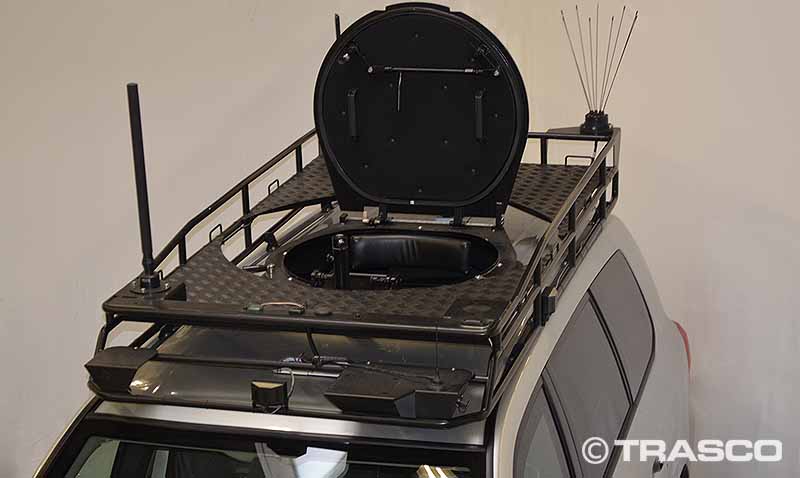

  • Rotating armoured roof turrell with machine gun holder
  • HD gel battery, HD alternator 12V and 24V, switchable to 230V DC output
  • HD steel bull bar front bumper with LED, halogen and IR lightning
  • 5 to. electric winch

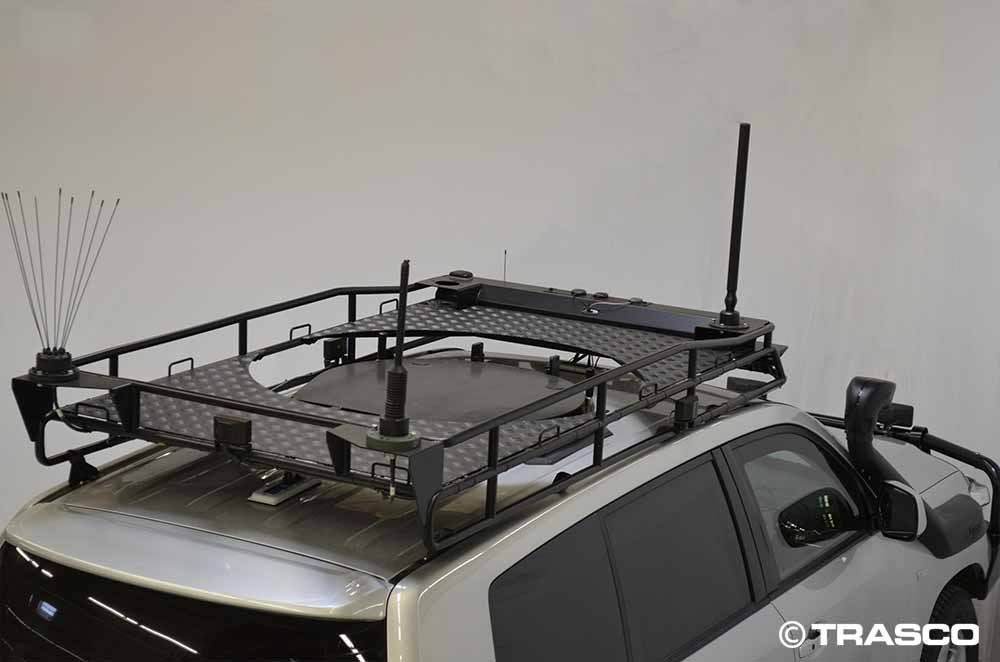

  • Roof carrier for special aerials and sensors, like jammer, multiband digital communication systems, etc.
  • Gun ports, fire extinguishing system, emergency exits
  • Bomb detector and first aid kits

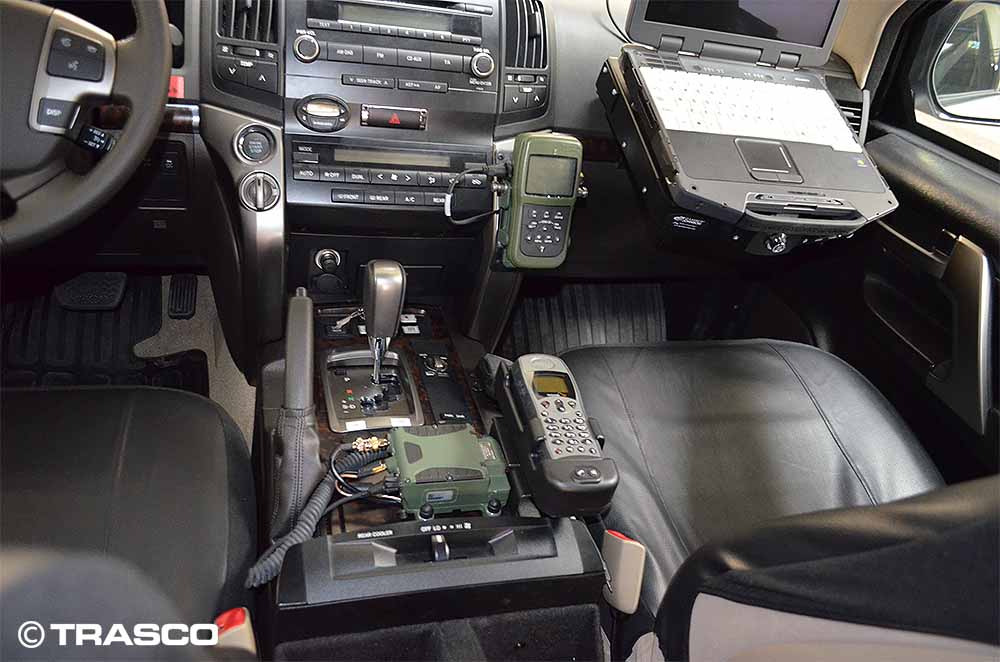

  • Military & Police convertible interior, gun holders, handles etc.
Armoring

Threat

Testlevel according to
VPAM APR 2006

Classification by
PM 2007 (PM)
BRV 2009 (VR)

Stanag 4569
AEP 55 (level)

Comparable to*
DIN EN 1063 (BR),
DIN EN 1522/23 (FB),
BRV 1999 (VR)

Type of Weapon

Calibre

Type of bullet

Testcondition

Standoff (m)

Standard Hit Spacing

7

PM 7
VR 7

Level 1

BR 5
FB 5
VR 5

M16A2/Famas-G2

5.56 x 45mm

FJ(2)/PB/SCP(1)

10 +/- 0.5

3 shots on the vertices of a triangle @ 120 +/- 10mm

BR 6
FB 6
VR 6

M80 Ball
(M60/M14/FAL-FN)

7.62 x 51mm

FJ(1)/PB/SC





( B6+ not classified)

M16A1/Famas-G1 (M193)

5.56 x 45mm

FJ(2)/PB/SC



8

PM 8
VR 8

Level 2



BZ-API
(AK-47)

7.62 x 39mm

FJ(1)/PB/HCI(1)

10 +/- 0.5

3 shots on the vertices of a triangle @ 120 +/- 10mm

20mm FSP

20mm

Fragment

1 shot in center of panel

9

PM 9
VR 9



BR 7
FB 7
VR 7

M61-AP
(M60/M14/FAL-FN)

7.62 x 51mm

FJ(2)/PB/HC(1)

3 shots on the vertices of a triangle @ 120 +/- 10mm



Technical facts


Toyota LC200

Toyota LC200

Type

UZJ 200

VDJ 200

Fuel

Petrol

Diesel

Cylinders

8

8

Cubic capacity in ccm

4,7

4,5

Torque Nm/rpm (*)

445 / 3400

650 / 1600 - 2800 (**)

Power HP/rpm  (*)

285 / 5400

282 / 3600 (**)

Seats

5

5

Tank capacity + subtank (l)

93 + 45

93 + 45

Left / right steering

Yes / Yes

Yes / Yes

manual / automatic transmission

No / Yes

Yes / Yes

Armoring level

B6

B6

Empty weight (kg)

3.790

3.840

Gross vehicle weight (kg)

4.440

4.490





Armoring level

Stanag Level  II

Stanag Level  II

Empty weight (kg)

4.260

4.310

Gross vehicle weight (kg)

4.790

4.840
Suspension

TOYOTA LAND-CRUSER 200 UPGRADED SUSPENSION COMPONENTS

Dependent on the base vehicle, the TRASCO Land Cruiser 200 is equiped with heavy duty shock absorbers, springs and swaybars for conventional suspensions (GX)  for the kenetic dynamic suspension system (VX), or for automatic hight control (VX option) suspension. Reinforced body mounts are placed between body and chassis for more driving stability.

Brakes

Special manufactured heavy duty discs, calipers and pads keep the brake performance and reduce the fading for all time safe deceleration due to the increased weight of the armored vehicle.

Tire and Rims

Special tires with a higher loadindex, up to 1550kg, with on- and offroad capabilities are mounted on the TRASCO LC200.

Rims with proofen payload, including a runflat system for emergency driving with flat tires, up to a range of 15km with 50km/h speed is the standard.

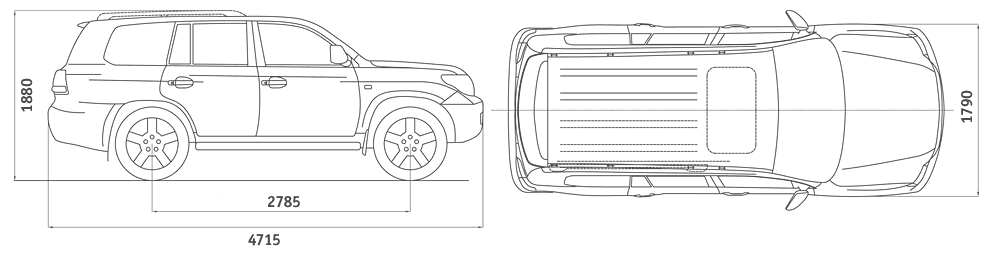

Dimension
