Based on Mercedes-Benz-G-Class

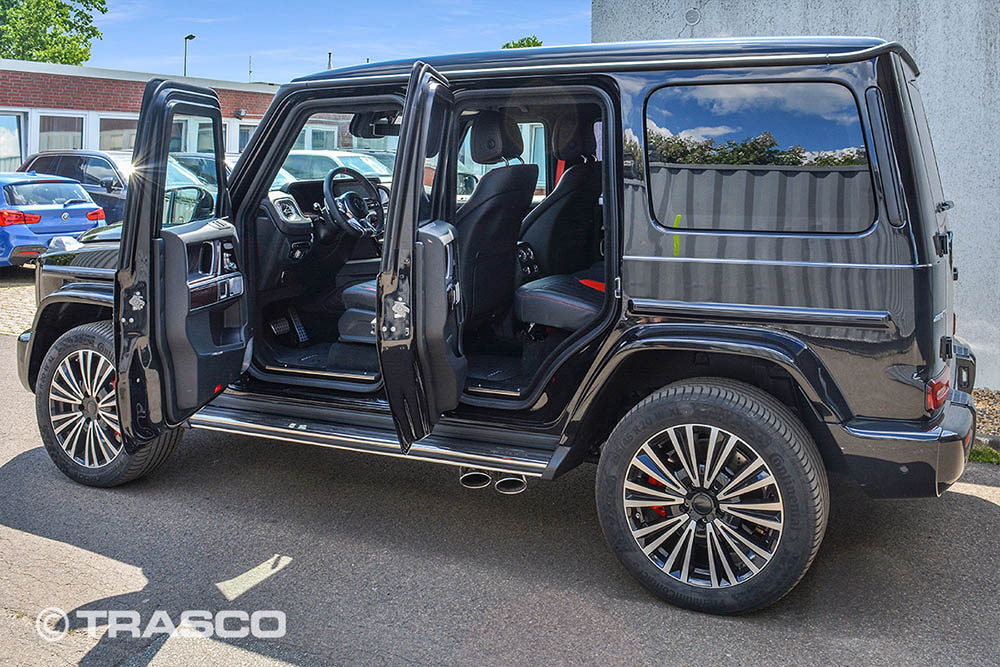

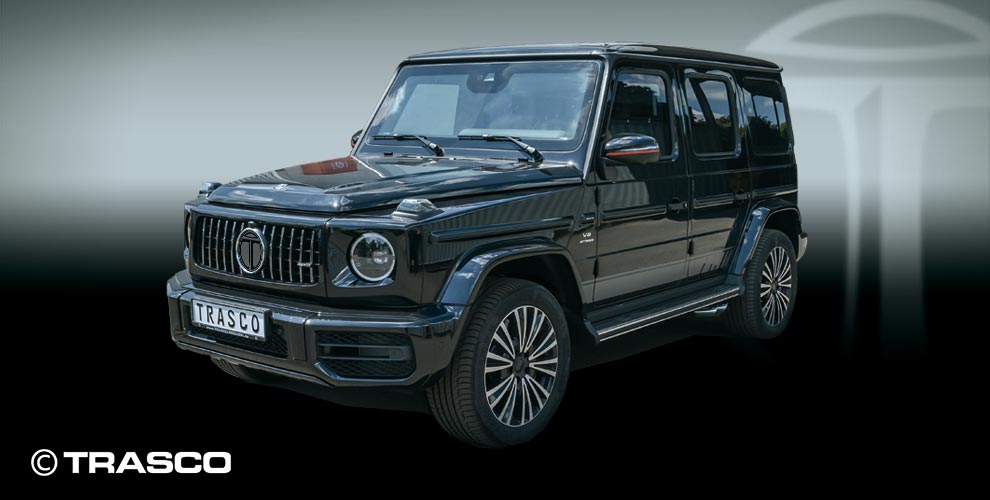

The Mercedes Benz G 63, also available as right hand drive, are armored by TRASCO in level B6 as well as in level B7. Since 1994 the G-Class

has been armored in Bremen-Germany and still belongs to the most reliable armored SUV´s in the world.

Armoring

Threat

Testlevel according to
VPAM APR 2006

Classification by
PM 2007 (PM)
BRV 2009 (VR)

Stanag 4569
AEP 55 (level)

Comparable to*
DIN EN 1063 (BR),
DIN EN 1522/23 (FB),
BRV 1999 (VR)

Type of Weapon

Calibre

Type of bullet

Testcondition

Standoff (m)

Standard Hit Spacing

7

PM 7
VR 7

Level 1

BR 5
FB 5
VR 5

M16A2/Famas-G2

5.56 x 45mm

FJ(2)/PB/SCP(1)

10 +/- 0.5

3 shots on the vertices of a triangle @ 120 +/- 10mm

BR 6
FB 6
VR 6

M80 Ball
(M60/M14/FAL-FN)

7.62 x 51mm

FJ(1)/PB/SC





( B6+ not classified)

M16A1/Famas-G1 (M193)

5.56 x 45mm

FJ(2)/PB/SC



9

PM 9
VR 9



BR 7
FB 7
VR 7

M61-AP
(M60/M14/FAL-FN)

7.62 x 51mm

FJ(2)/PB/HC(1)

10 +/- 0.5

3 shots on the vertices of a triangle @ 120 +/- 10mm

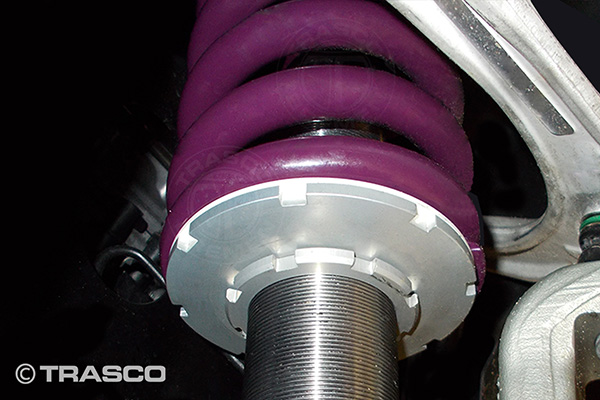

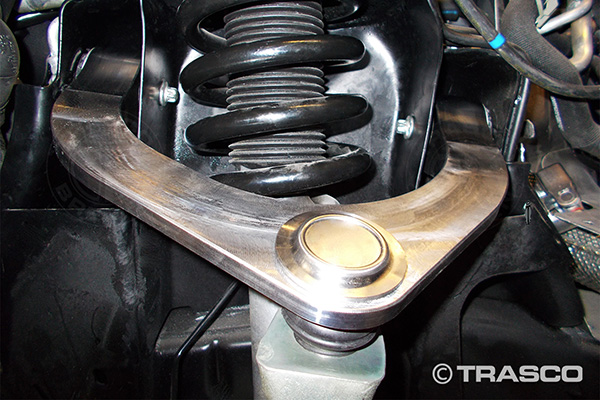

Suspension

G- CLASS
Reinforced axles upgrated with sway bars and heavy duty dampers and springs.

Brakes

High performance brake system.

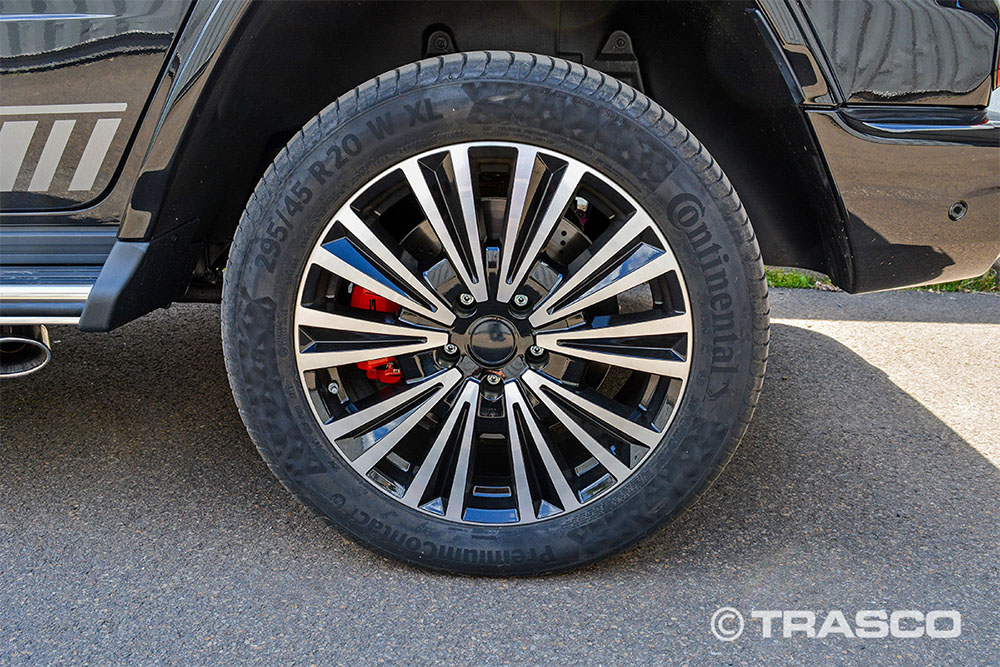

Tire and Rims

Due to the weight of the armored sedan or limousine, the vehicle is equipped with special tires with an increased load index.

Rims with special unique design and proven payload include the run flat system for emergency driving with a puncture up to a range of 15 km with 50km/h speed.
