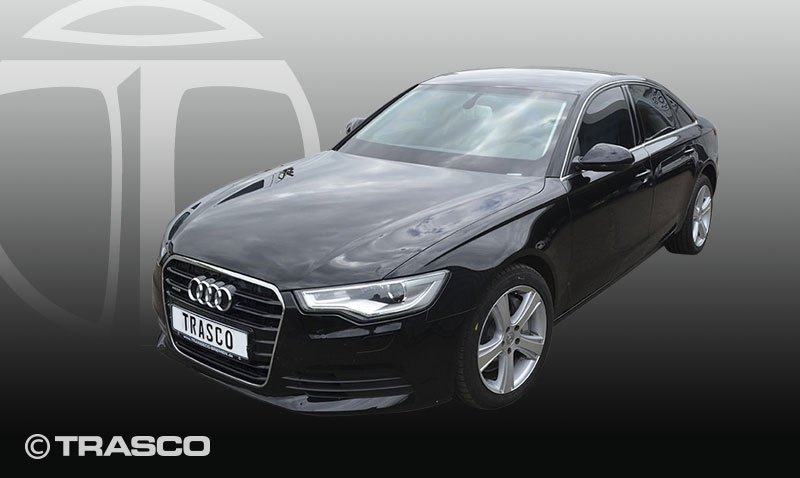

AUDI A6
The Audi A6 can be armored by TRASCO according to the armoring level B4+ (VPAM Level 6).
Luxury AUDI vehicles are being armored in Bremen since an official OEM-Cooperation was agreed in 1989 with AUDI AG. In the following years the armored AUDI A8L (D2) was produced by our company for AUDI AG unitl Audi
decided to set up an inhouse armoring programm in Ingolstadt. Until today AUDI AG is being supplied with spare parts for the vehicles which were armored during the period of the cooperation and which are still in usage in various parts of the world.
Armoring cage with A, B and C pillars and overlaps integrated in passenger cell
Laminated safety glass produced by European glass manufacturers
Additional door adjustment integrated in door and frame
Armored trunk box for electronics, battery or other options
Self-sealing fuel tank
Underbody protection panel against 2x DM51 grenades (optional)
Heavy duty wheels which are designed for a payload of 1600 kg
Upgraded suspension is equipped with heavy duty air springs and shock absorbers, upgraded suspension and control arms at the frond and rear axle
Reinforced door arresters and door hinges
Reinforced bumper front and rear as option
|
Threat |
Testlevel according to |
Classification by |
Stanag 4569 |
Comparable to* |
Type of Weapon |
Calibre |
Type of bullet |
Testcondition |
|
|---|---|---|---|---|---|---|---|---|---|
|
Standoff (m) |
Standard Hit Spacing |
||||||||
|
|
6 |
PM 6 |
( B4+ not classified) |
PS Ball |
7.62 x 39mm |
FJ(1)/PB/SCP(3) |
10 +/- 0.5 |
3 shots on the vertices of a triangle @ 120 +/- 10mm |
|
Special manufactured heavy duty discs, calipers and pads are being used due to the increased weight of the armored vehicle, which keep the brake performance and reduce fading for all time safety braking.
Due to the weight of the armored sedan or limousine, the vehicle is equipped with special tires with an increased load index.

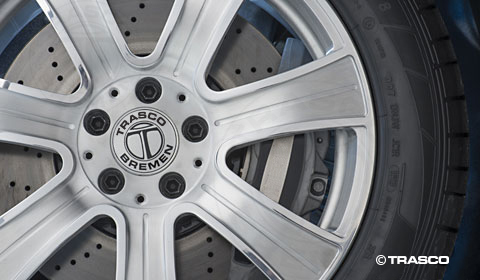

Rims with special unique design and proven payload include the run flat system for emergency driving with a puncture up to a range of 50 km with 50km/h speed.
