TRASCO - KOMPETENZ IM BALLISTISCHEN FAHRZEUGSCHUTZ

SCHUTZ VOR STANDARDBEDROHUNGEN – DIREKTBESCHUSS

Prüfbedingungen

Die Bedingungen erfüllen oder übertreffen die Vorgaben des Europäischen Komitees für Normung in den Richtlinien EN1063, 1522, 1523 und PM2000 für Qualifizierung und Zertifizierung von Panzerungslösungen. Auf Kundenwunsch können auch Prüfbedingungen gemäß STANAG 4569 verwendet werden.





PB

Spitzkopfgeschoss

SCP1

Weichkern (Blei) mit Stahlpenetrator (Typ M855 oder SS109)

SC

Weichkern (Blei)

SCP2

Weichkern (Blei) mit Stahlpenetrator

SP

Weiche Spitze

SCP3

Weichkern (Blei) mit Stahlpenetrator (3,7 ±0,1 g, Typ PS)

CB

Konisches Geschoss

HC(1)

Stahlhartkern, Masse 4,6 ±0,1 g, Härte >63 HRC

JSP

Mantelweichpunkt

HC(2)

Wolframkarbid-Hartkern, Masse 5,95 ±0,1 g, Munitionstyp M993/AP8, Härte >63 HRC

FJ(1)

Vollmantelgeschoss (Stahl, beschichtet)

HCI(1)

Stahlhartkern mit Brandsatz, kombinierte Masse 5,4 ±0,1 g, Härte >63 HRC

FJ(2)

Vollkupfermantelgeschoss

HCI(2)

Stahlhartkern mit Brandsatz, Munitionstyp BZ-API, Härte >63 HRC

FN

Flat nose bullet







Threat

Testlevel according to
VPAM APR 2006

Classification by
PM 2007 (PM)
BRV 2009 (VR)

Stanag 4569
AEP 55 (level)

Comparable to*
DIN EN 1063 (BR),
DIN EN 1522/23 (FB),
BRV 1999 (VR)

Type of Weapon

Calibre

Type of bullet

Testcondition

Standoff (m)

Standard Hit Spacing

4

PM 4
VR 4



BR 4
FB 4
VR 4

357 S/W

.357 Magnum

FJ(1)/CB/SC

10 +/- 0.5

3 shots on the vertices of a triangle @ 120 +/- 10mm

44 S/W

.44 Magnum

FJ(2)/FN/SC

6

PM 6
VR 6



( B4+ not classified)

PS Ball
(AK 47)

7.62 x 39mm

FJ(1)/PB/SCP(3)

10 +/- 0.5

3 shots on the vertices of a triangle @ 120 +/- 10mm

7

PM 7
VR 7

Level 1

BR 5
FB 5
VR 5

M16A2/Famas-G2

5.56 x 45mm

FJ(2)/PB/SCP(1)

BR 6
FB 6
VR 6

M80 Ball
(M60/M14/FAL-FN)

7.62 x 51mm

FJ(1)/PB/SC



( B6+ not classified)

M16A1/Famas-G1 (M193)

5.56 x 45mm

FJ(2)/PB/SC

8

PM 8
VR 8

Level 2



BZ-API
(AK-47)

7.62 x 39mm

FJ(1)/PB/HCI(1)

10 +/- 0.5

3 shots on the vertices of a triangle @ 120 +/- 10mm

20mm FSP

20mm

Fragment

10 +/- 0.5

1 shot in center of panel

9

PM 9
VR 9



BR 7
FB 7
VR 7

M61-AP
(M60/M14/FAL-FN)

7.62 x 51mm

FJ(2)/PB/HC(1)

10 +/- 0.5

3 shots on the vertices of a triangle @ 120 +/- 10mm

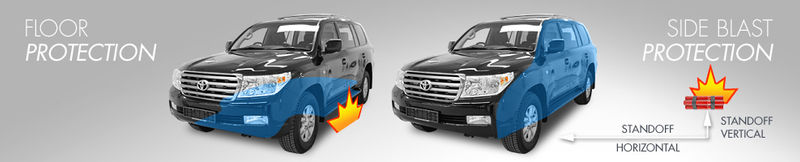

TOYOTA LAND CRUISER 200

Armor Location

Option Designation

Blast Protection

Azimuthal

Charge
Weight

Charge
Type

Charge
Initation

Charge
Location

Standoff
(Horizontal)

Standoff
(Vertical)

Floor

Degree

kg



m




N

None

N/A

N/A


DM51

(2) DM51 - Separated

0,118

(2) DM51

PETN

Under body

N/A

Distance between vehicle floor and ground minus test device depends on type of vehicle


DM51

(2) DM51 - Bundled

0,118

(2) DM51

PETN

Under body

N/A


M67

(3) DM51
-or- (1) L2A2
-or- (1) M67

0,177

(3) DM51
(1) M67
(1) L2A2

PETN

Under body

N/A


DM31

DM-31

0,54

DM-31

TNT

Under body

N/A

Perimeter Laterial Blast


N

None

N/A

N/A


15kg @ 4m

15kg @ 4m

16

P4 / C4

Bridgewire &
Detonator
(Sintox)

B-Pillar

4

0,5


15kg @ 3m

15kg @ 3m

3


15kg @ 2m

15kg @ 2m

2

For LAV Vehicles, Blast & Floor Protection is not included. For FAV, DM51 Floor is included only.

Explanation of the abbreviation



B6-DM51-15kg@3m

This vehicle has a direct fire protection level B6  with the
following selected blast protection options:

  • (2) DM51 Separated Floor Protection
  • 15kg at 3m Standoff Perimeter Lateral Blast Protection



For all other armoring levels, please contact us.
